Specifications + Dimensions
|25 Kw||60 Hz @ 1800 rpm, 1 Ph, 1.0 PF,
120/240 V/104.1 A, 120 V/208.3 A
|20 Kw||50 Hz @ 1500 rpm, 1 Ph, 1.0 PF,
220 V/90.9 A
|Optional||Three Phase with 0.8 PF|
|Voltage Regulation||+/- 1%|
|(Based on SAE J1995 and ISO 3046)|
|Weight and Height|
|Approximate Dry Weight:||993 lbs
|Sound Enclosure Weight:||140 lbs
|Enclosure length:||52.9 in
|Enclosure width:||24.2 in
|Enclosure height:||27.7 in
4 cylinder diesel
|HP @ RPM||39/1800
|Approximate fuel use:|
|1800 RPM @ full load||2.23 gph
|1800 RPM @ half load||1.17 gph
|1500 RPM @ full load||1.78 gph
|1500 RPM @ half load||0.93 gph
|(Actual fuel consumption will vary depending on operating conditions.)|
|Wet exhaust elbow||3 inch
(76 mm) OD
|Raw water inlet||3/4 in
(19 mm) OD
|Fuel inlet and return||1/4 inch NPT|

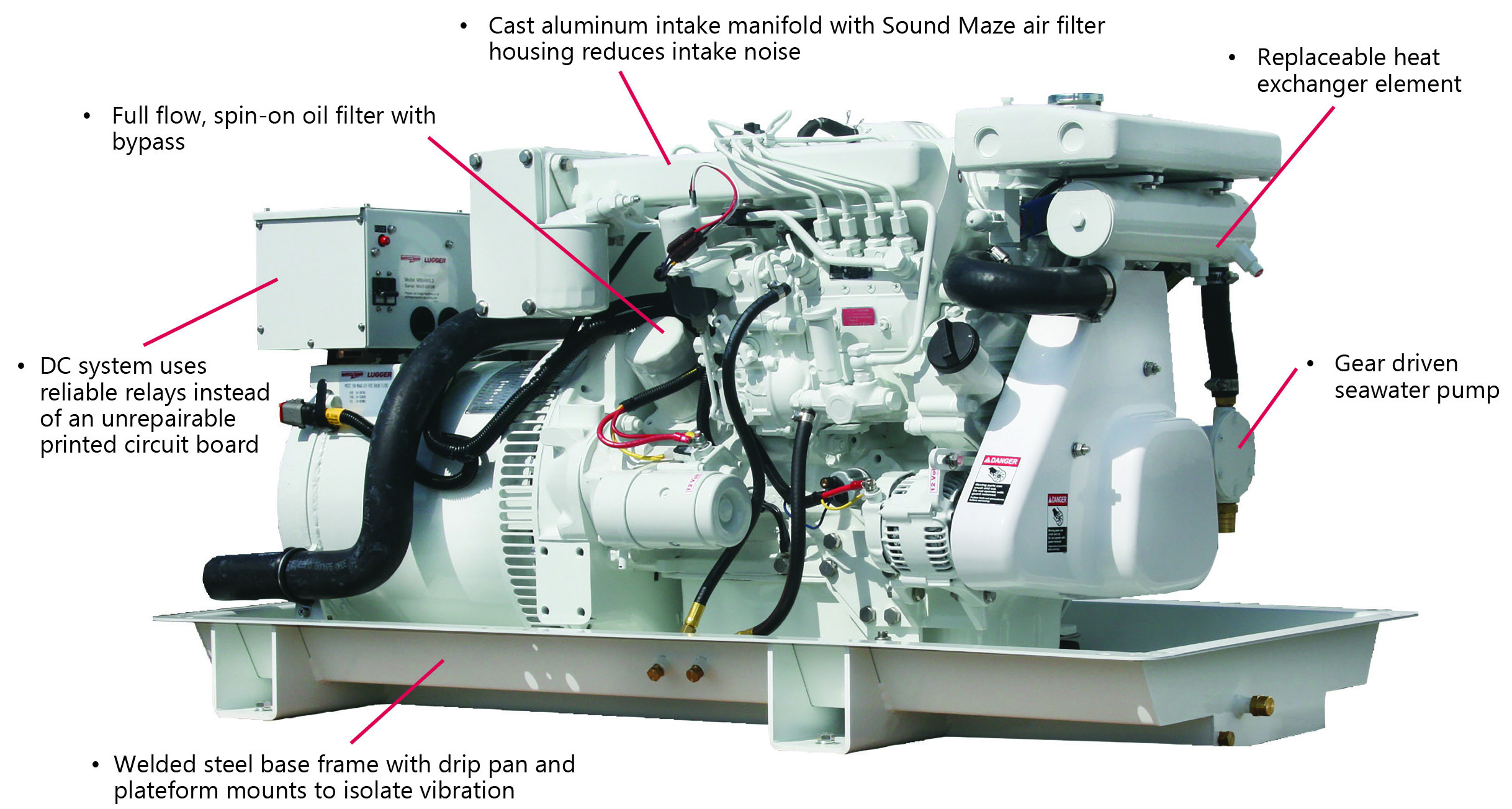

Features + Benefits
Four cycle, 4 cylinder, liquid cooled, naturally aspirated, overhead valve diesel with glow plugs for quick starting. The forged carbon-steel crankshaft is stronger than cast iron whole the cross fl ow head makes for more efficient breathing. Helical cut gear train reduces noise.
Standard heat exchanger cooling with optional keel cooling. Copper-nickel, tube-type heat exchanger has removable end caps for easy cleaning. Electrolysis protection via zinc anode. The bronze and stainless steel seawater pump with rubber impeller is gear driven, eliminating a potential failure point.
The self-venting fuel system features an inline injection pump with 3-5% mechanical governor for close AC frequency control. The fuel lift pump is mechanical with a hand primer, eliminating electronic pump failures.
The M864W3 meets US EPA Tier III emission standards. Its cast aluminum intake manifold with Sound Maze system reduces noise, and its washable air cleaner makes routine maintenance simple. The wet exhaust elbow is stainless steel.
The closed crankcase vent system traps oil vapor and keeps engine room clean. 6.9 qt (6.5 ltr) oil capacity for better lubrication and 200 hour oil change intervals. Oil drain hose with valve plumbed to base pan as standard.
The DC System features a 12 volt starter motor and battery charging alternator with belt guard. The set is equipped with a standard remote mount control panel, featuring an hour meter, stop-start switch, engine gauges, a preheat switch, and includes a 20 foot (6m) harness. The standard panel can be expanded to six panels, up to 110 feet from the set. Gauges include oil pressure, coolant temperture and DC Voltage. Low oil pressure, high coolant temperature and high exhaust temperature safety shutdowns standard.
The Northern Lights, direct coupled, four pole, four lead generator has Class “H” insulation, a pre-lubricated bearing and features a conservative heat rise rating of 95°C/50°C ambient. Our automatic voltage regulator gives you ±1% voltage regulation. The AVR protected by a dedicated circuit breaker.
