Specifications + Dimensions

ModelRA08
BTU @ 60 HZ (50 HZ)8,000 (6,600)
AMP Draw 115V (230V)1.86 (0.93)
Dimensions: HxWxD in. (mm)9 (228.6) x 16.8 (426.7) x 13.8 (350.5)
Weight: Lbs (kg)59 (26.79)
ModelRA12
BTU @ 60 HZ (50 HZ)12,000 (10,000)
AMP Draw 115V (230V)3.20 (1.60)
Dimensions: HxWxD in. (mm)12.25 (311.1) x 18.5 (469.9) x 15.75 (400)
Weight: Lbs (kg)64 (29.06)
ModelRA16
BTU @ 60 HZ (50 HZ)16,000 (13,250)
AMP Draw 115V (230V)3.55 (1.70)
Dimensions: HxWxD in. (mm)12.25 (311.1) x 18.5 (469.9) x 17.3 (439.4)
Weight: Lbs (kg)66 (29.96)
ModelRA18
BTU @ 60 HZ (50 HZ)18,000 (15,000)
AMP Draw 115V (230V)3.55 (1.70)
Dimensions: HxWxD in. (mm)12 (304.8) x 19 (482.6) x 18.25 (463.5)
Weight: Lbs (kg)28 (21.71)
ModelRA24
BTU @ 60 HZ (50 HZ)24,000 (20,000)
AMP Draw 115V (230V)6.40 (3.20)
Dimensions: HxWxD in. (mm)12.25 (311.1) x 35 (889) x 15.8 (401.3)
Weight: Lbs (kg)120 (54.48)
ModelRA32
BTU @ 60 HZ (50 HZ)32,000 (26,500)
AMP Draw 115V (230V)7.10 (3.40)
Dimensions: HxWxD in. (mm)12.25 (311.1) x 35 (889) x 17.5 (439.4)
Weight: Lbs (kg)128 (58.11)

Note:

Information and dimensions are subject to change without notice.

Downloads

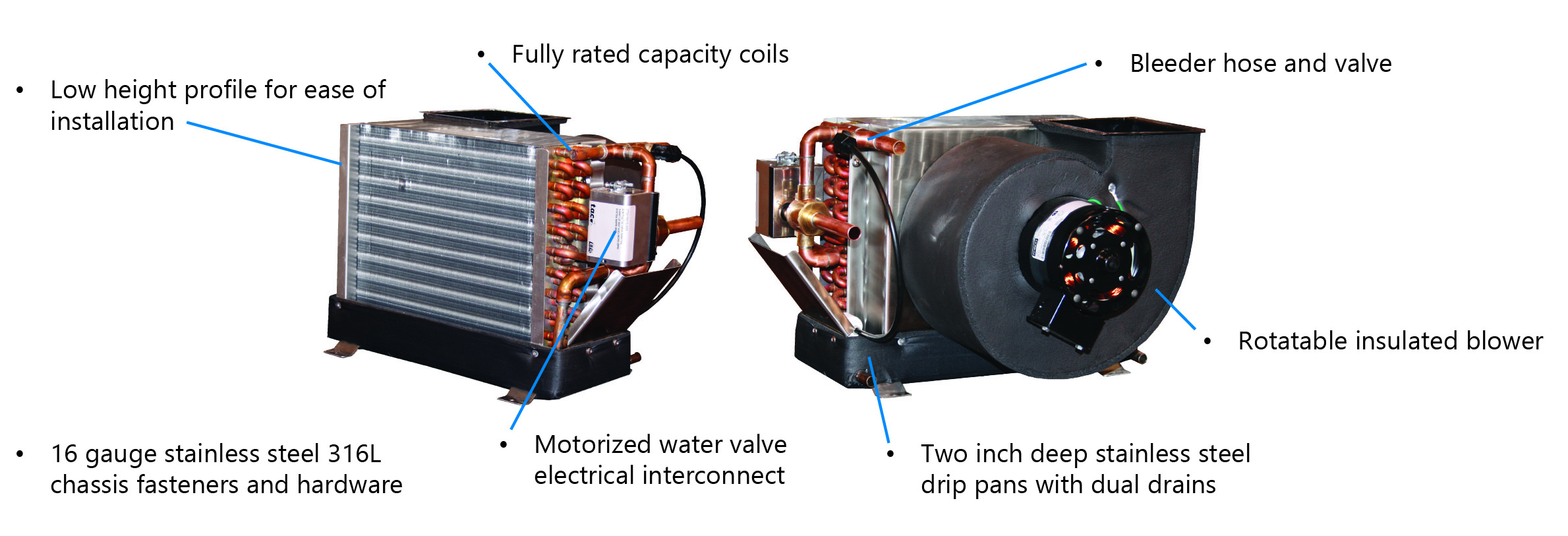

Features + Benefits

  • Constructed with 16 gauge 316L grade stainless steel shroud and insulated pan with two drains.
  • 2 inch deep stainless steel drip pans contain condensation.
  • Standard with bleeder hose and valve.
  • Fully rated fan coil set.
  • High-volume, rotatable blower, insulated for quiet operation.
  • 24,000 and 32,000 BTU units feature dual blower arrangement for ease of installation.
  • Engineered to eliminate the need for vibration isolation mounts.
  • Designed to withstand harsh marine environments.
  • All models available with optional electric heat strips and antimicrobial UV light.
