M944TG

4 Cylinder 4 Stroke Diesel
M944TG is a 38 kW turbocharged marine diesel generator with gear-driven seawater cooling and dedicated-winding short-circuit capability.
Request a QuoteContact Us
M944TG 38/32 kW marine diesel generator
M944TG · Features & Benefits

Simply
Engineered

For Your Vessel.

M944TG is built for vessels that need higher output from a compact turbocharged four-cylinder package while retaining conventional serviceable systems. Gear-driven seawater cooling, hand-primed mechanical fuel delivery, a 250-hour oil interval, remote controls, and dedicated-winding generator excitation support dependable operation at the 38 kW level.

Dedicated-Winding AVR

Strong short-circuit capability
The external automatic voltage regulator is powered by a dedicated AC winding, providing the 300 percent short-circuit capability specified for the generator.

Turbocharged Engine

Higher output from compact displacement
Turbocharging increases the air available for combustion, allowing the engine to produce the generator's higher output from its compact four-cylinder platform.

Gear-Driven Seawater Pump

Dependable belt-free cooling
The bronze and stainless steel seawater pump is gear driven, eliminating a drive belt from raw-water circulation and removing a potential cooling-system failure point.

Forged Crankshaft & Cross-Flow Head

Durable, efficient engine breathing
A forged carbon-steel crankshaft provides a strong rotating foundation, while the cross-flow cylinder head supports efficient engine breathing.

250-Hour Oil Service Interval

More time between oil changes
The lubrication system is specified for 250-hour oil changes, extending the interval between routine oil services for this generator.

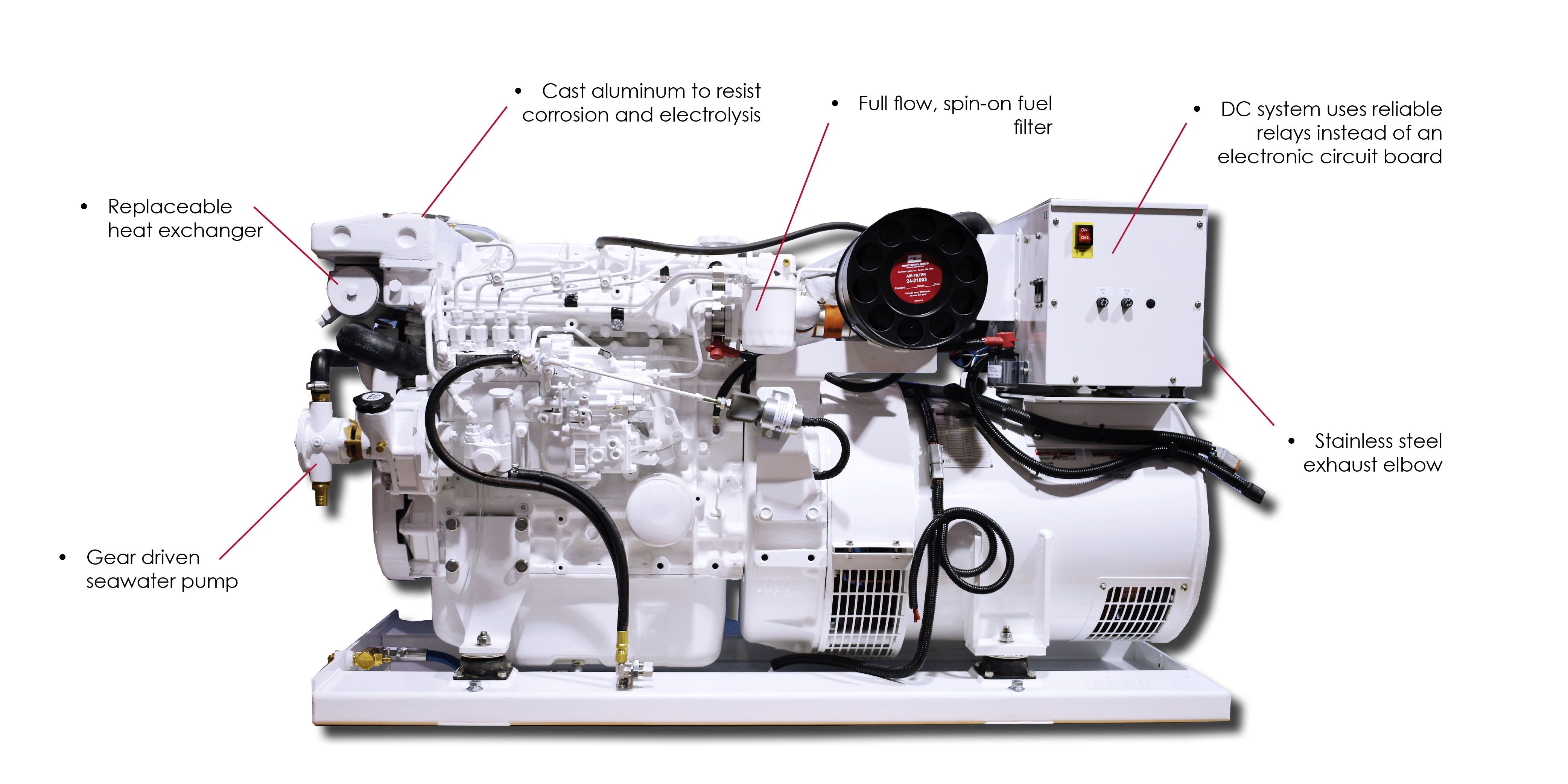

Additional Features & Benefits

Technical Specifications · M944TG

AC Output
Specification 60 Hz 50 Hz
Rated Power (kW)3832
Flywheel Horsepower6050
RPM18001500
Frequency (Hz)6050
Phase (PF) Standard1 Phase (1.0 PF)
Engine Data
Cylinders4
Cycle4
Displacement203 cu in3.3 L
Bore3.7 in94 mm
Stroke4.72 in120 mm
AspirationTurbocharged
Oil Capacity (with filter)10.5 qt10 L
Cooling System
SW Inlet Hose ID0.75 in19 mm
Fuel System
Specification 60 Hz 50 Hz
Fuel Rate - Full Load (GPH)3.262.33
Min Fuel Suction Line1/4 NPT in10 mm
Min Fuel Return Line1/4 NPT in10 mm
Max Pump Suction Lift39 in990 mm
Air & Exhaust
Specification 60 Hz 50 Hz
Air Consumption (CFM)Air Consumption (m³/min)—952.7
Exhaust Gas Volume (CFM)Exhaust Gas Volume (m³/min)—2356.7
Max Exhaust Back Pressure27 in H₂O685 mm H₂O
Wet Exhaust Elbow OD3 in76 mm
Exhaust Gas Temperature767°F408°C
Heat Radiated (BTU/min)590
Dimensions & Weight
Length56.6 in1433 mm
Width25.7 in653 mm
Height31.5 in813 mm
Dry Weight1388 lbs630 kg
Enclosure Length60.1 in1527 mm
Enclosure Width28.7 in729 mm
Enclosure Height32.0 in813 mm
Enclosure Weight98 lbs44 kg
DC Electrical
Standard Voltage12V
Optional Voltage24V
Min Battery Capacity (Ah)220
Min Battery CCA (12V)640
Starter Current (12V)225 A
Min Battery CCA (24V)320
Starter Current (24V)200 A
Battery Cable Size#1/0
M944TG · Document Library

Documents

11 DOCUMENTS · 5 TYPES

Spec Sheets · 3 Files

2-Speed Operation Option Specification Sheet
S120
Gem Series Sound Enclosure Specs
L768
M944TG Specification Sheet
B191

Manuals · 4 Files

Operator's Manual
OM944T3
944 Series Parts Manual
P944-3
Generator Set Installation Manual
IM1000
Gem Series Sound Shield Assembly Instructions
L831

Drawings · 2 Files

Gem Series Generator Installation Drawing
D-5280C
Gem Series Sound Enclosure Installation Drawing
D-5195D

Literature · 1 File

Spare Parts Kits Brochure
L510

Warranty · 1 File

California Emissions Control Warranty Statement
L581
